ASP4816-HE

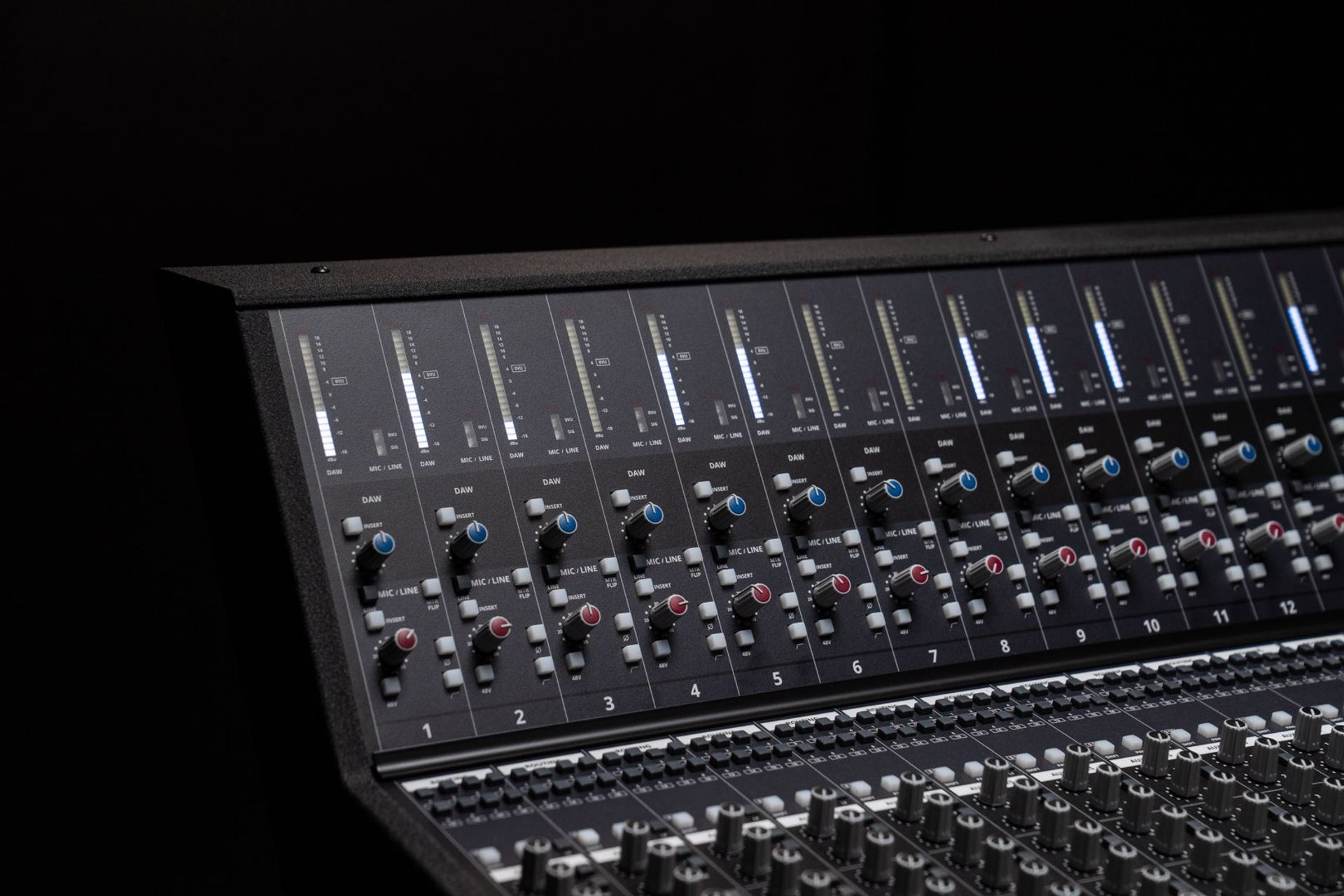

Designed to deliver ultra-low noise and low distortion with a touch of classic analogue warmth, ASP4816-HE's 16 discrete hybrid Class-A preamps are ready to handle any microphone, instrument or source you can throw at it.

With a flexible topology offering up to 60dB of gain and an incredibly wide bandwidth ensuring your transient detail is accurately preserved in stunning resolution, the Audient preamp gives you a versatile and flexible solution ready for any session.

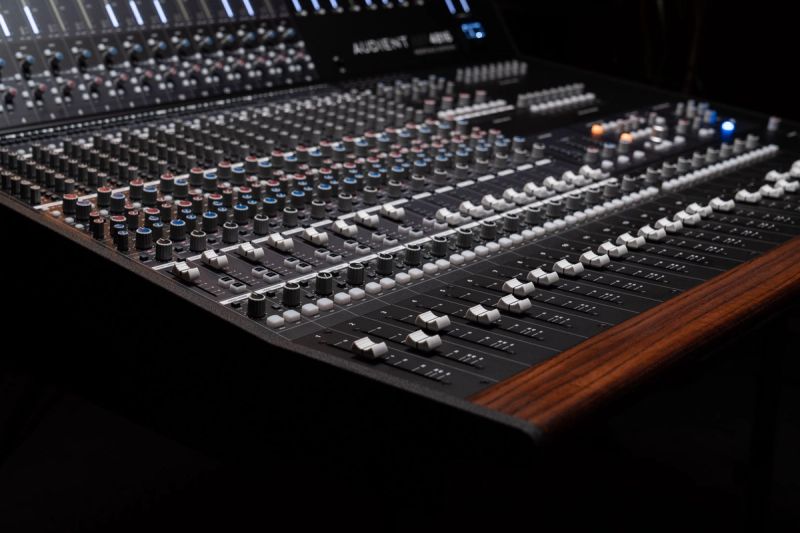

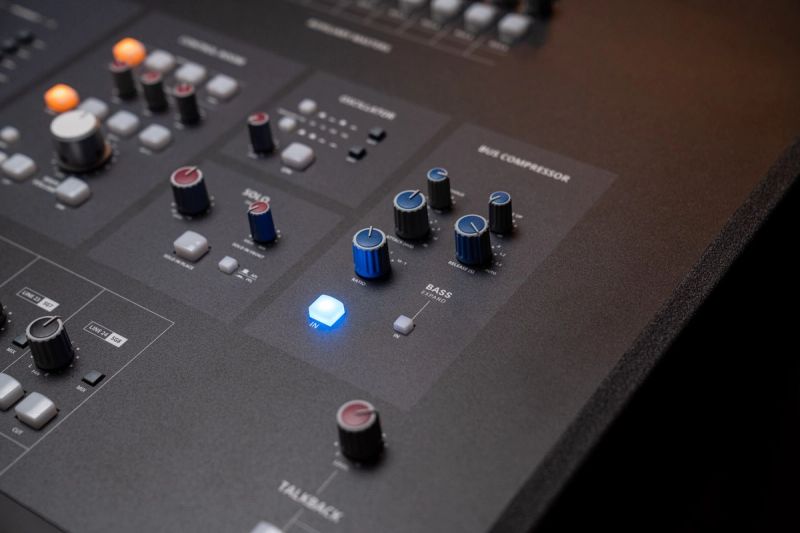

Often likened to classic analogue boards from the 80s, the Audient mix bus compressor does far more than just control levels, it adds weight, depth and warmth to your mix as well as helping to glue your production together for a more polished result.

Featuring adjustable ratio control, auto-release settings, a VU gain reduction meter for better visual feedback and the much coveted sidechained high pass filter Bass Expand – designed to let you tighten up your mixes and add punch without compromising your low end.

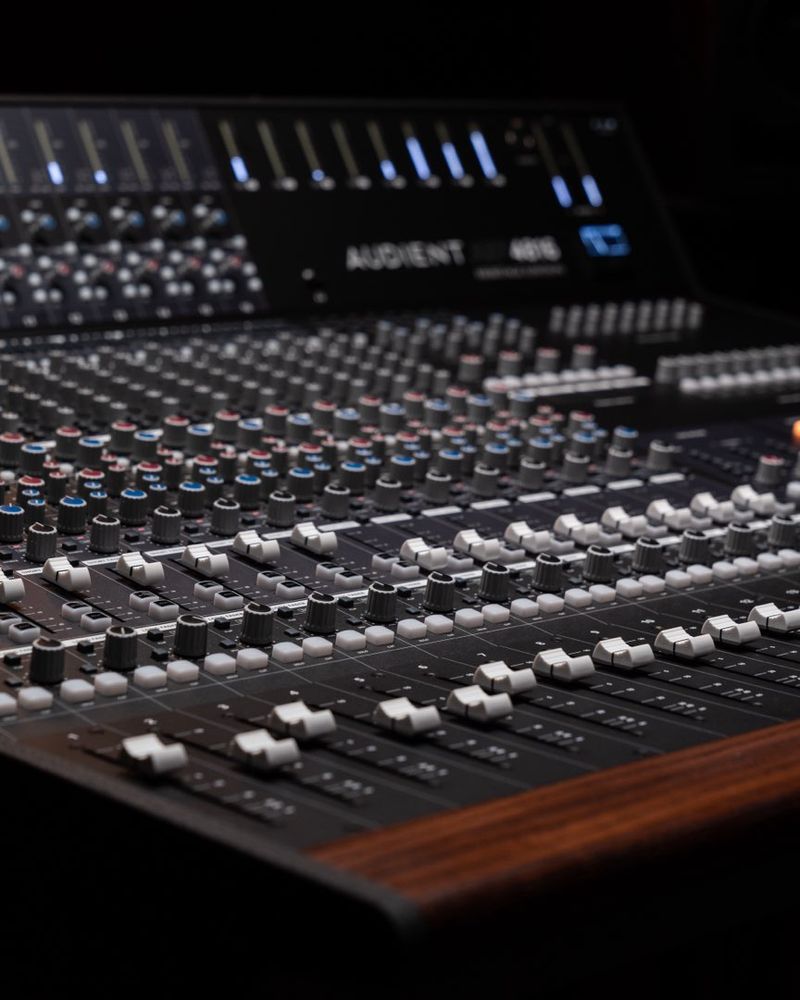

Add colour and shape your mixes with the Vintage Mix Bus Processor. A discrete transformer drive produces a weighty, harmonically exciting and ever-so-slightly gritty sound, letting you add character to your mixes. Whilst a Low Bump and High Lift EQ let you shape the response of the console to the style of music you are working on.

The mix bus summing amplifiers have been significantly upgraded to the renowned American John Hardy 990 discrete transistor amplifiers, the “American Muscle Car” of opamp design. Offering increased dynamics, sweet spot and punch, as well as reducing the noise of the console – ensuring your mix bus benefits from total clarity with a little bit of character.

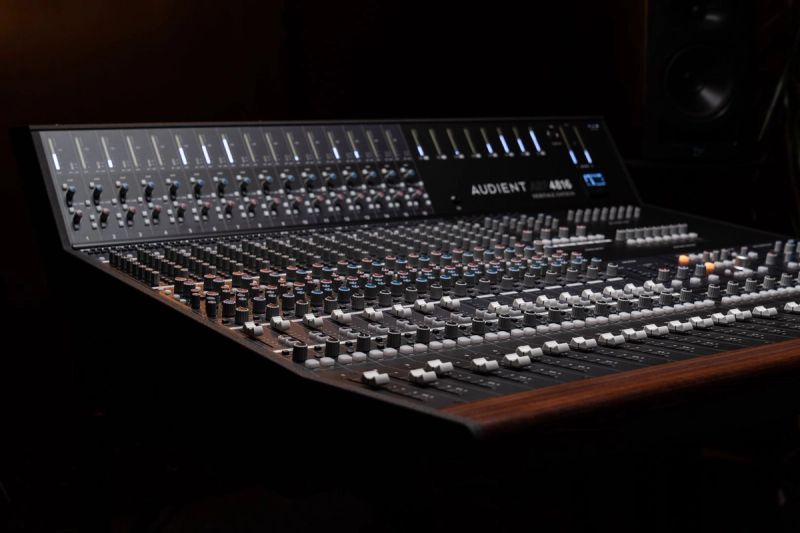

The massively flexible Dearden designed EQ offers two fully parametric bands that span from 40Hz to 20kHz, are adjustable from -15dB to +15dB and offer an adjustable Q control. These are flanked by low and high shelving EQ bands with the ability to engage the ‘Air’ button for that often needed finishing sheen.

The EQ can also be split across both the short and long faders, meaning you can EQ both your mic inputs and DAW returns at the same time, making it incredibly easy to start building your mix from the moment you start recording.

The ASP4816-HE features an astounding amount of connectivity for such a compact frame size. With 48 channels, over 40 insert points, 8 sends and 8 groups available on mixdown the ASP4816-HE will handle the most comprehensive of mixing and tracking tasks.

And with so many sends, buses and inserts available, when partnered with a suitable patchbay the ASP4816-HE offers an incredible number of routing options for creative bouncing, summing and parallel processing all with none of the problematic phase and latency issues that digital systems can have.

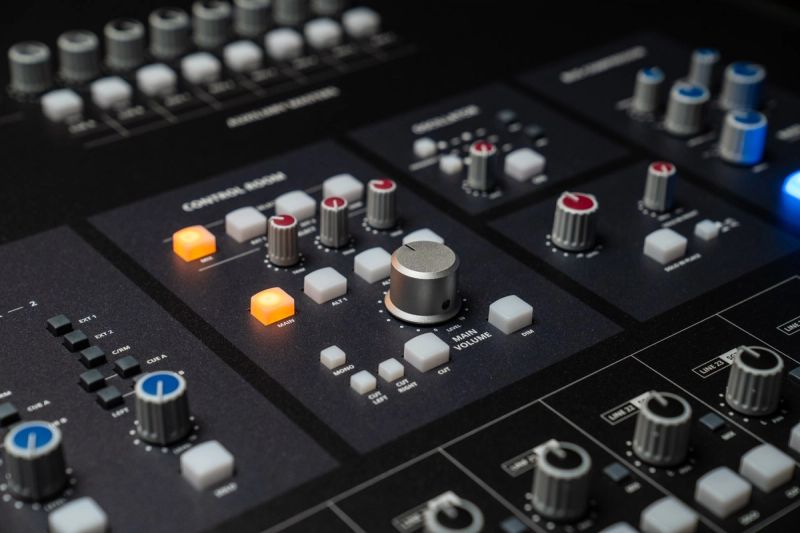

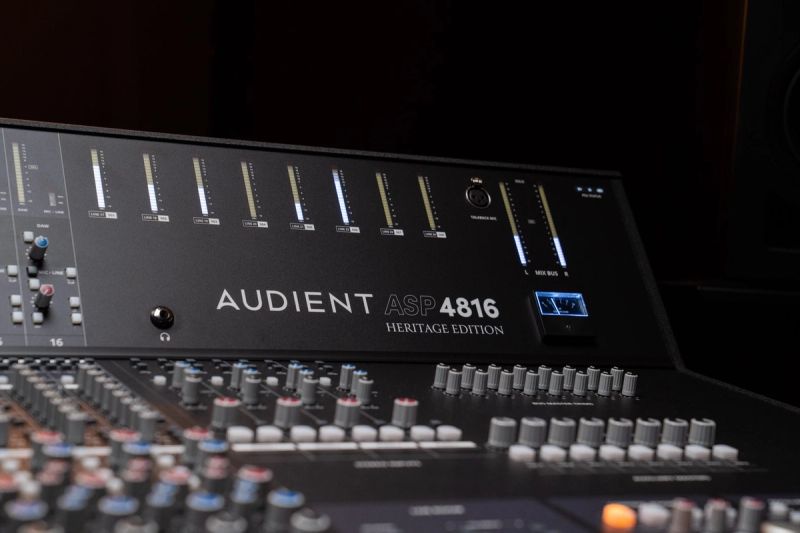

A fully featured monitor control section offers full artist communication, foot-switch enabled talkback control, solo in front, powerful source selection and loud speaker control with a short passive signal path for incredibly clear and accurate monitoring. The Heritage Edition also benefits from a monitoring grade headphone output solely for the engineer.

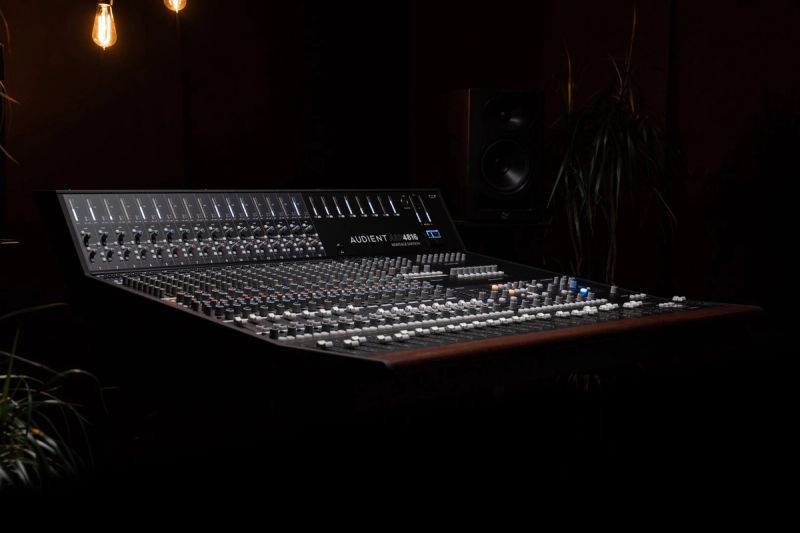

At around 1m x 1m, the ASP4816-HE utilises clever circuit board design to provide you with the versatility and sound of a large format recording console but in a beautiful, space-conscious package. Making it the ideal analogue console solution for even the smallest of studios.

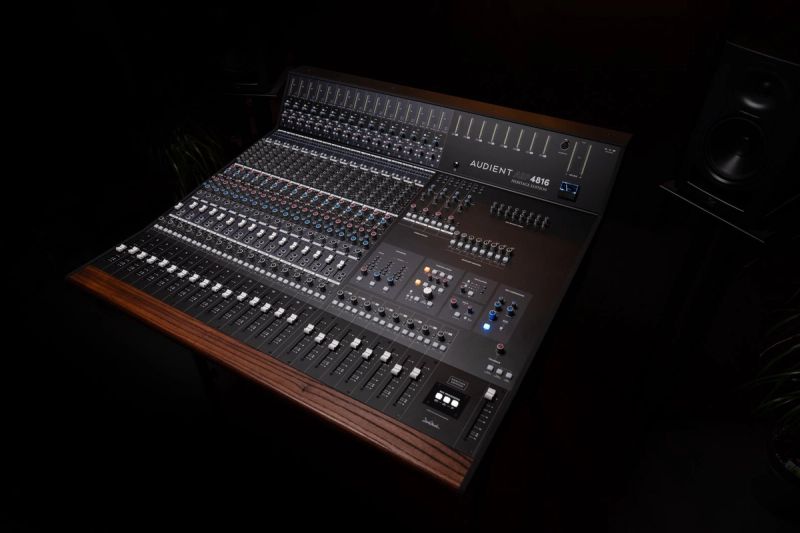

Redesigned from the ground up to not only look amazing at the core of your studio, but to make navigating around the console easier than ever. With a new colourway, all-new cool-white metering, easy to read labelling and a UK handmade wooden armrest, the ASP4816-HE not only looks premium but feels it too.
